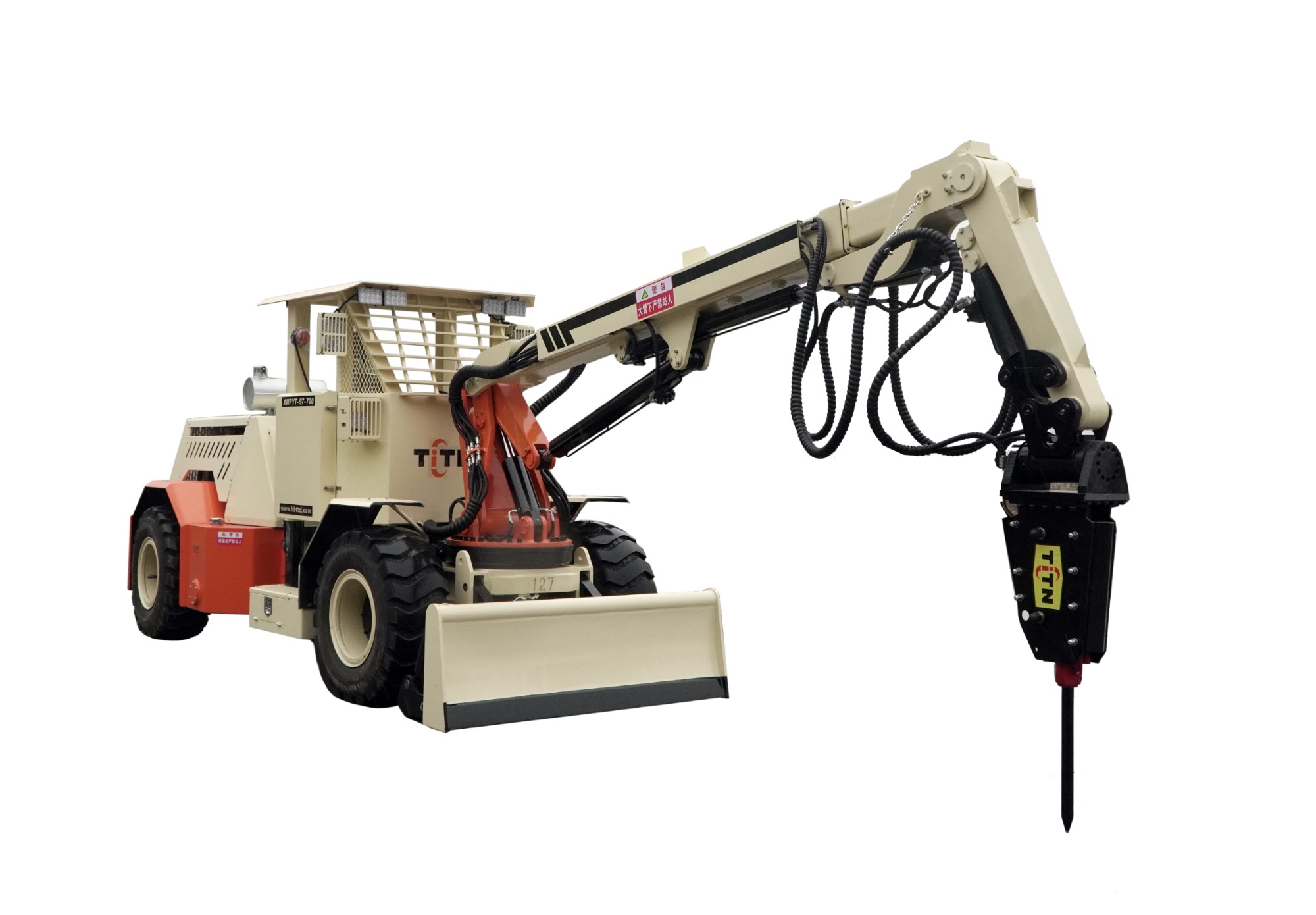

XMPYT-74-500 skimming trolley

XMPYT-74-500 skimming trolley

Short Description:

XMPYT series prying trolley: It is a special equipment widely used in domestic non-coal mines for the treatment of hidden dangers of roof fall roof slices. It is also called roadway cleaning machine and prying top truck. At present, the XMPYT series skimming trolleys currently produced are mainly three general models: XMPYT-97-700B, XMPYT-74-500 and XMPYT-45-450. Among them, they are classified ac...


Product Details

Product Tags

Product Specifications:


XMPYT series prying trolley: It is a special equipment widely used in domestic non-coal mines for the treatment of hidden dangers of roof fall roof slices. It is also called roadway cleaning machine and prying top truck. At present, the XMPYT series skimming trolleys currently produced are mainly three general models: XMPYT-97-700B, XMPYT-74-500 and XMPYT-45-450. Among them, they are classified according to the applicable detailed design. , Each model is specially designed and configured, and can be divided into a series of products such as general-purpose, plateau climate, high-temperature environment and remote control operation.

Product technical features:

1. The scientific and reasonable structure configuration design meets the requirements of different mine tunnel turning radius, gradeability, and tunnel operation traffic conditions. Among them, special chassis, front bulldozing shovel, fully-sealed wet bridge (loss of pressure) Protective type) and matching American MICO brake system, remote control operating device, safe, stable and reliable, in a leading position.

2. Using high-strength structural steel stamping process, Hawk energy stress aging process and gas shielded welding technology, the structural parts of the whole vehicle are checked for strength and can withstand strong loads.

3. The rotating structure design of the working arm and the prying hammer head, covering a large area, can meet the needs of all-round prying and risk removal operations.

4. The main components of the hydraulic system: prying hammer, hydraulic oil pump, slice proportional handle, solenoid valve group, hydraulic control multi-way valve, priority valve group, rotary reducer, swing cylinder and hydraulic cylinder, brake system, etc. are all imported And the products of domestic high-quality brand manufacturers, with reliable quality and performance, high safety factor, energy saving and consumption reduction, and smooth operation.

5. Air-cooled cooling technology is used to control the oil temperature of the system, which is scientific and reasonable, and has low operating and maintenance costs.

6. Reasonable ergonomic layout design is adopted for the cab and control system. The design and configuration of the sealed air-conditioned cab, centralized control, and remote control are scientific and reasonable, comfortable and easy. The whole vehicle is safe and stable in operation, flexible and maneuverable, remote-controlled operation, rapid evacuation, and strong protection, which fully demonstrates the characteristics of modern mechanized equipment.

7. The whole vehicle is painted with shot blasting to remove rust, and the military aircraft carrier anti-rust primer is applied to make the equipment have a stronger anti-rust, anti-corrosion ability and service life under various working conditions.
