KJCJ-4.5 mining concrete mixer truck

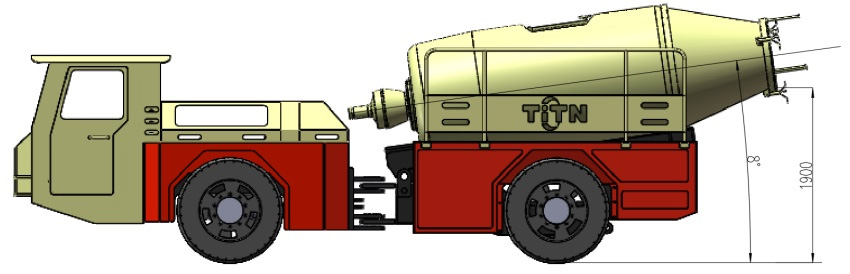

The actual carrying capacity of the TTGC-5 concrete mixer is 4.4m³, which is suitable for concrete transportation in underground mines and tunnels with a tramp height of 2.4 meters or higher. Powerful liquid cooling, high-power liquid cooling turbocharged Deutz 119kW, maximum speed of 9km/h in an upwardly inclined 1:7 tunnel full load. In a horizontal tunnel, the maximum speed is 25km/h, and the standard drum hoist feature allows flexible adjustment of the concrete discharge height to 1.9 meters, so that the load can be unloaded even when the angle or level of the receiving unit and the concrete conveyor are different.

The cab provides excellent visibility and comfortable cabins for the driver and passengers. The cabin is designed for safe and convenient entry and exit. The dashboard is simple and easy to use. The enclosed cabin provides a noise level of <75 decibels, ensuring safe and comfortable driving.

The vehicle layout allows easy access to all service points, and all daily inspections can be carried out from the ground.

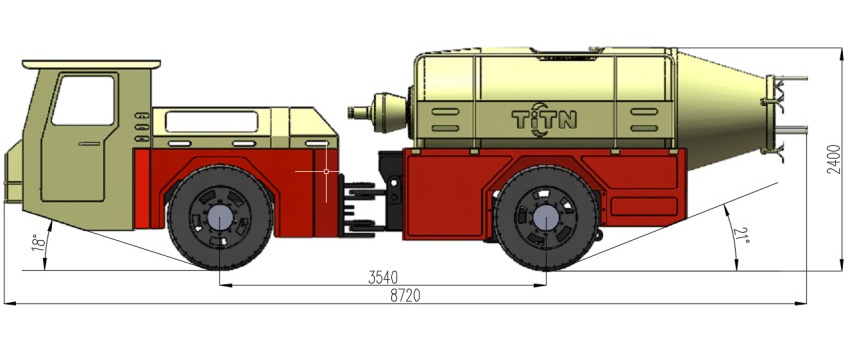

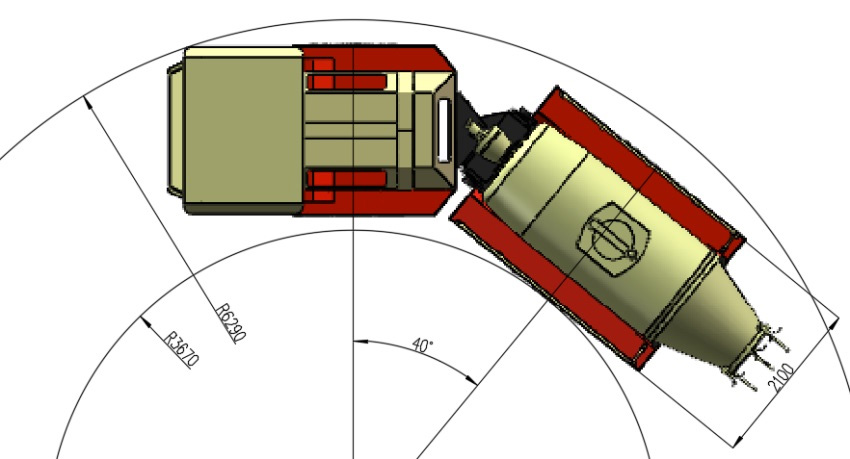

Dimensions and turning radius
